PCIe 5.0 Explained: What It Means for Your Next GPU Upgrade
PCIe 5.0 doubles the bandwidth of PCIe 4.0, but does it really boost GPU performance? Learn what PCIe 5.0 means for your next GPU upgrade, gaming, and future-proof builds
Tayyab
9/17/20255 min read
PCI Express (PCIe) is the high-speed interface that connects your GPU, SSDs, and other expansion cards to the motherboard. Each PCIe slot has multiple lanes (x1, x4, x8, x16), which you can think of as parallel data highways. For maximum bandwidth, modern GPUs typically use a full x16 slot. One of the key things about PCIe is that every new generation (3.0, 4.0, 5.0, and beyond) doubles the per-lane data rate. In practical terms, PCIe 4.0 delivers about 32 GB/s of one-way bandwidth over 16 lanes, while PCIe 5.0 doubles that to roughly 63–64 GB/s. Importantly, all PCIe generations share the same physical connector. This means a PCIe 5.0 graphics card will still work in a PCIe 4.0 slot (and vice versa), it will just run at the lower generation’s speed.
Lanes & Bandwidth: A GPU’s x16 slot can carry up to 16 lanes. Each lane’s speed depends on the PCIe . Since PCIe 3.0, each new version doubles the per-lane. PCIe 5.0 runs at 32 GT/s per lane (versus 16 GT/s for PCIe 4.0), so the total bandwidth in x16 is ~64 GB/s (PCIe 5.0) vs ~32 GB/s (PCIe 4.0).
Backward Compatibility: PCIe is fully backward/forward . You can plug a PCIe 5.0 GPU into an older PCIe 4.0 or 3.0 slot – it just falls back to that standard’s. This means you won’t “brick” anything by mixing generations, but you won’t get the higher bandwidth until the whole path supports it.
Real-World Use: In most gaming and desktop workloads, even PCIe 4.0 x16 rarely becomes the bottleneck. Modern GPUs have large on-board memory and do most processing on-card. Any data the CPU sends over PCIe (textures, frame data, etc.) usually fits well below PCIe 4.0’s . In other words, today’s games don’t fully saturate the PCIe 4.0 x16 link, so doubling that bandwidth often yields little obvious gain.
PCIe 5.0 vs PCIe 4.0: Double the Bandwidth?

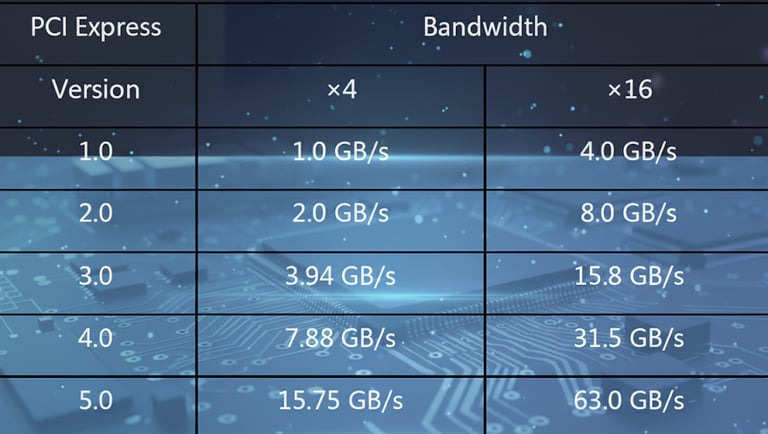

While the slot shapes haven’t changed, modern PCIe 5.0 makes each lane dramatically faster. For example, PCIe 4.0 x16 delivers about 32 GB/s one-way, while PCIe 5.0 x16 doubles that to roughly 64 GB/s.
In practice, this means a GPU in a PCIe 5.0 x16 slot could transfer data at twice the rate of PCIe 4.0 if the workload demands it. This extra bandwidth provides valuable headroom for data-intensive tasks such as professional compute workloads, multi-GPU rendering, and AI training. However, for most single-GPU gaming and everyday applications, PCIe 4.0 already provides more than enough bandwidth.
Today, many new high-end motherboards include PCIe 5.0 support. Platforms such as AMD’s AM5 (X670E) and Intel’s 700- and 800-series chipsets typically provide a primary PCIe 5.0 x16 slot for the GPU. Secondary slots for expansion cards or M.2 drives may still run at PCIe 4.0 or lower speeds, since board manufacturers often allocate extra lanes to storage or connectivity features.
In short, PCIe 5.0 doubles the raw bandwidth of PCIe 4.0 while using the exact same physical connector. It’s essentially a drop-in upgrade, if both your motherboard and GPU support PCIe 5.0, you can take full advantage of the added performance headroom without changing the form factor.
Real-World Impact on GPU Performance
Despite PCIe 5.0’s impressive theoretical bandwidth, real-world testing shows negligible differences in gaming and typical GPU workloads compared to PCIe 4.0.
Minimal FPS change: Benchmarks of modern GPUs across PCIe 5.0, 4.0, and even 3.0 reveal only a 1–4% performance swing between generations, with virtually no measurable difference between PCIe 4.0 and 5.0 in games.
Content creation results: In workloads like Blender and Unreal Engine, PCIe 5.0 x16, PCIe 5.0 x8, and PCIe 4.0 x16 perform nearly the same. Even cutting lane counts in half has little effect on rendering or design tasks.
When slowdowns occur: Performance drops only become noticeable when the lane count is drastically reduced (for example, PCIe 4.0 x4 or PCIe 3.0 x4), which can cause a 7–10% or greater performance loss. This is not an issue for standard GPU configurations, which almost always use the full x16 slot.
Summary: PCIe 4.0 x16 is already more than fast enough for today’s GPUs. Moving to PCIe 5.0 may provide theoretical bandwidth gains, but in practice, it delivers only about a 1% improvement in most gaming and desktop applications. For the vast majority of users, there is little to no visible difference between PCIe 4.0 and PCIe 5.0 in everyday use.
Planning Your GPU Upgrade: Do You Really Need PCIe 5.0?
So what does all this mean for your next GPU upgrade? In most cases, there’s no urgent need to jump to PCIe 5.0 right away. Here are some practical guidelines:
Upgrade your GPU first: If you install a PCIe 5.0 GPU into a PCIe 4.0 system, it will simply run at PCIe 4.0 speeds. That’s perfectly fine, real-world performance differences are negligible. You can enjoy the benefits of a new GPU without replacing your motherboard immediately.
Future-proof if rebuilding: If you’re building a brand-new, high-end PC on the latest AMD or Intel platform, it makes sense to choose a motherboard with PCIe 5.0 support. While this won’t improve today’s gaming performance, it ensures more headroom for future GPUs, ultra-fast NVMe SSDs, or other bandwidth-heavy components. You’ll also gain access to platform upgrades like DDR5 memory and faster I/O.
Budget and value: PCIe 5.0-ready motherboards, chipsets, and CPUs usually come at a higher cost. If your main goal is upgrading your GPU for gaming, PCIe 4.0 hardware is more affordable and still delivers essentially the same performance.
Professional use cases: For specialized tasks such as multi-GPU rendering, compute workloads, or AI training, PCIe 5.0’s additional bandwidth can be valuable. However, many professional setups rely on GPU-to-GPU interconnects or large onboard memory, so even here PCIe 4.0 often remains sufficient.
The Bottom Line
PCIe 5.0 provides huge potential for the future but minimal gains today. PCIe 4.0 x16 already offers more than enough bandwidth for modern GPUs, and moving from PCIe 4.0 to 5.0 often results in only about a 1% performance difference in games. If you’re simply upgrading your graphics card, stick with your current PCIe 4.0 setup because you won’t lose any real performance. But if you’re building a cutting-edge system and want to stay ahead of the curve, opting for PCIe 5.0 gives you extra future-proofing at no compatibility cost.
